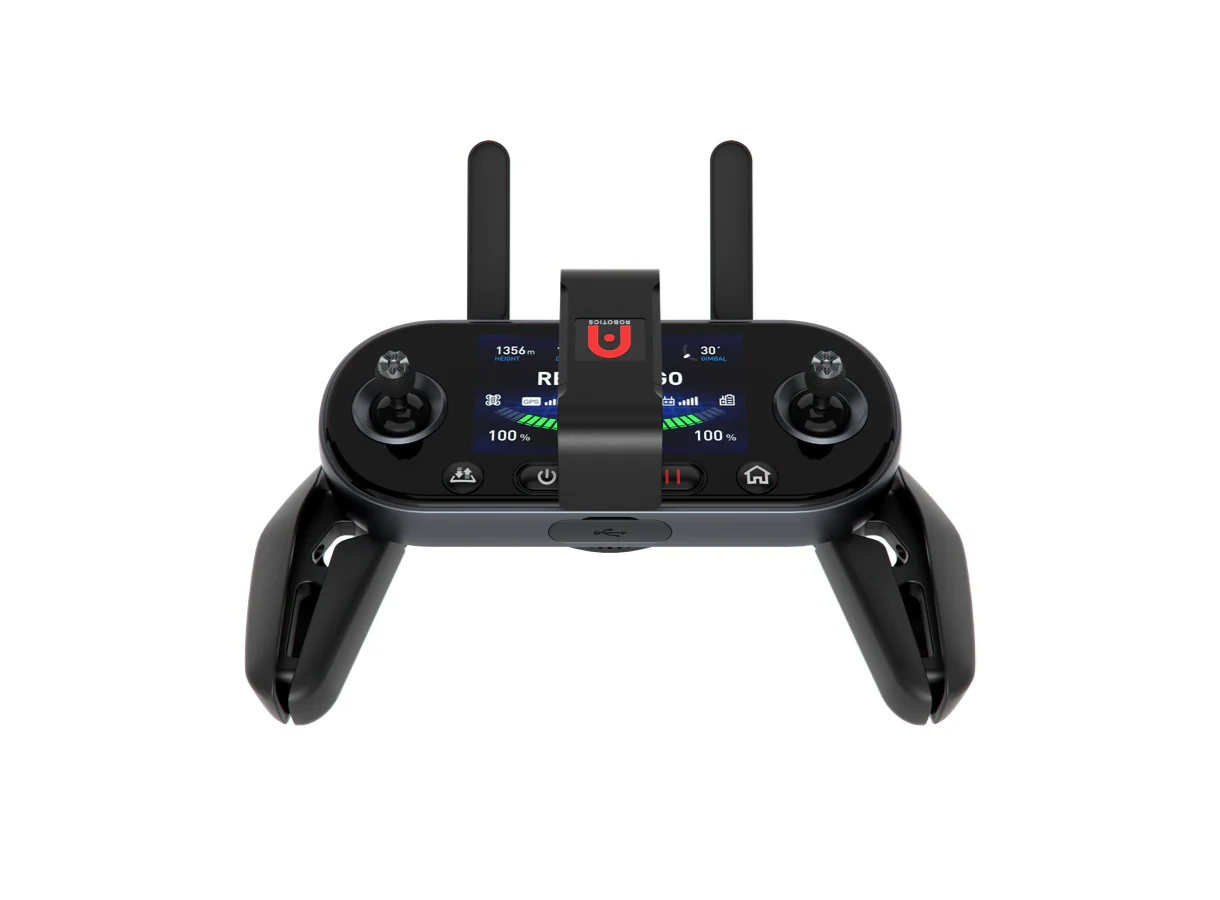

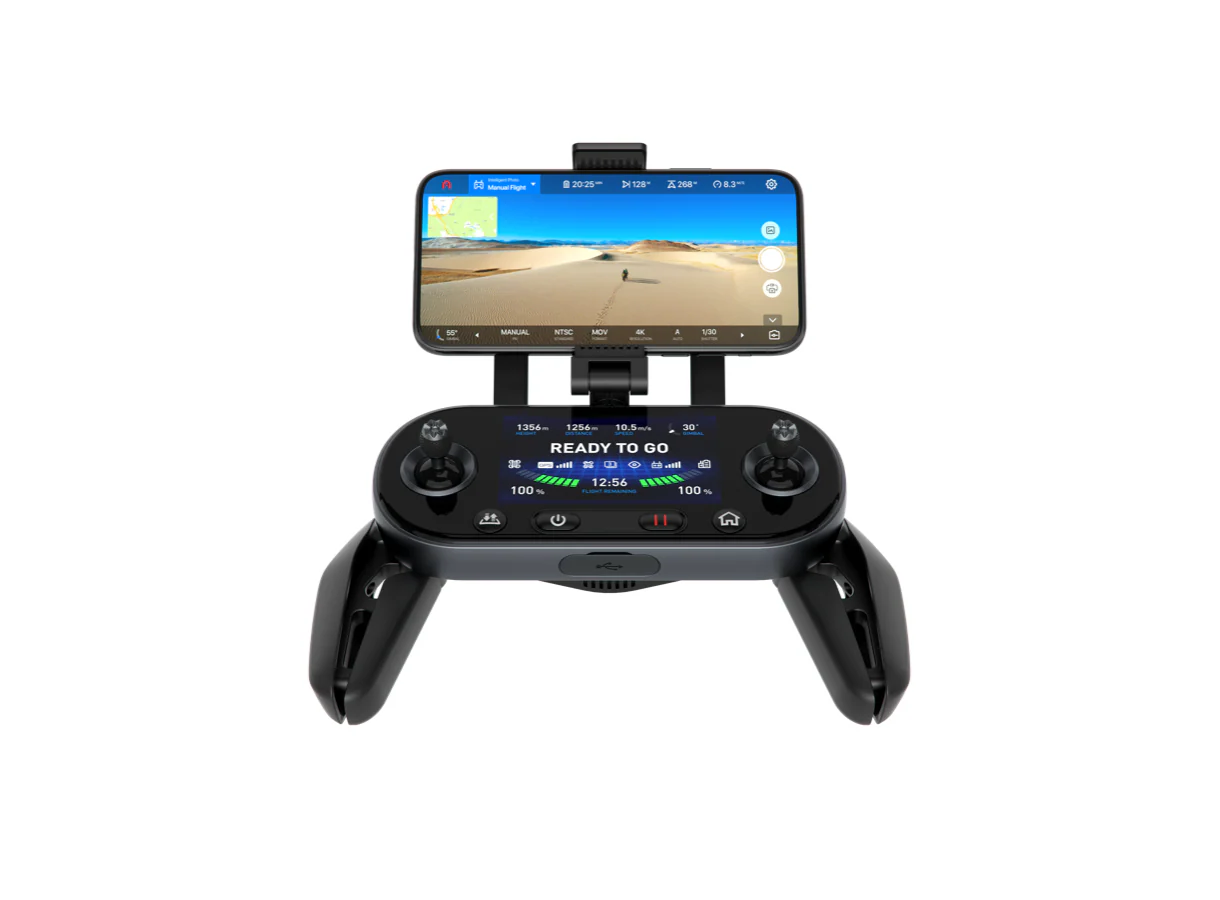

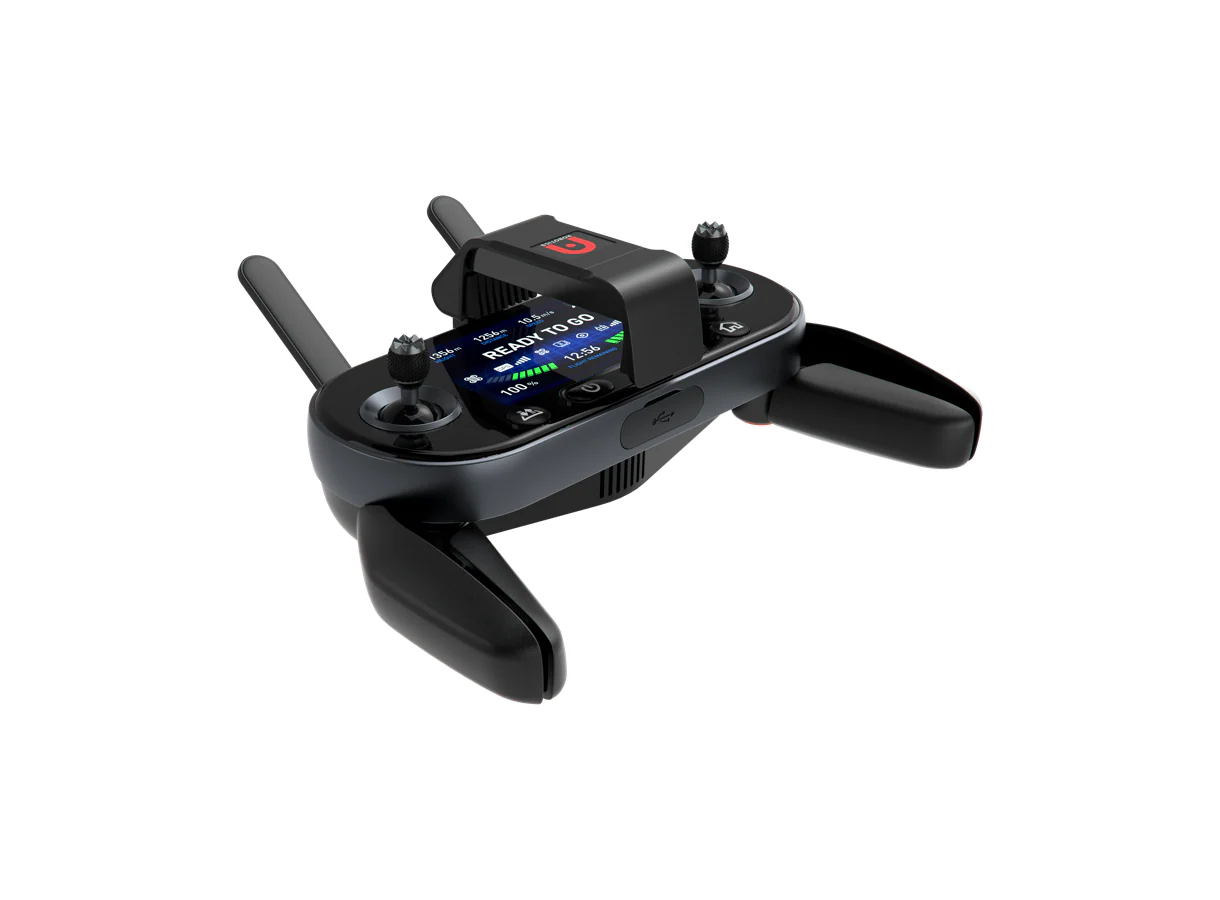

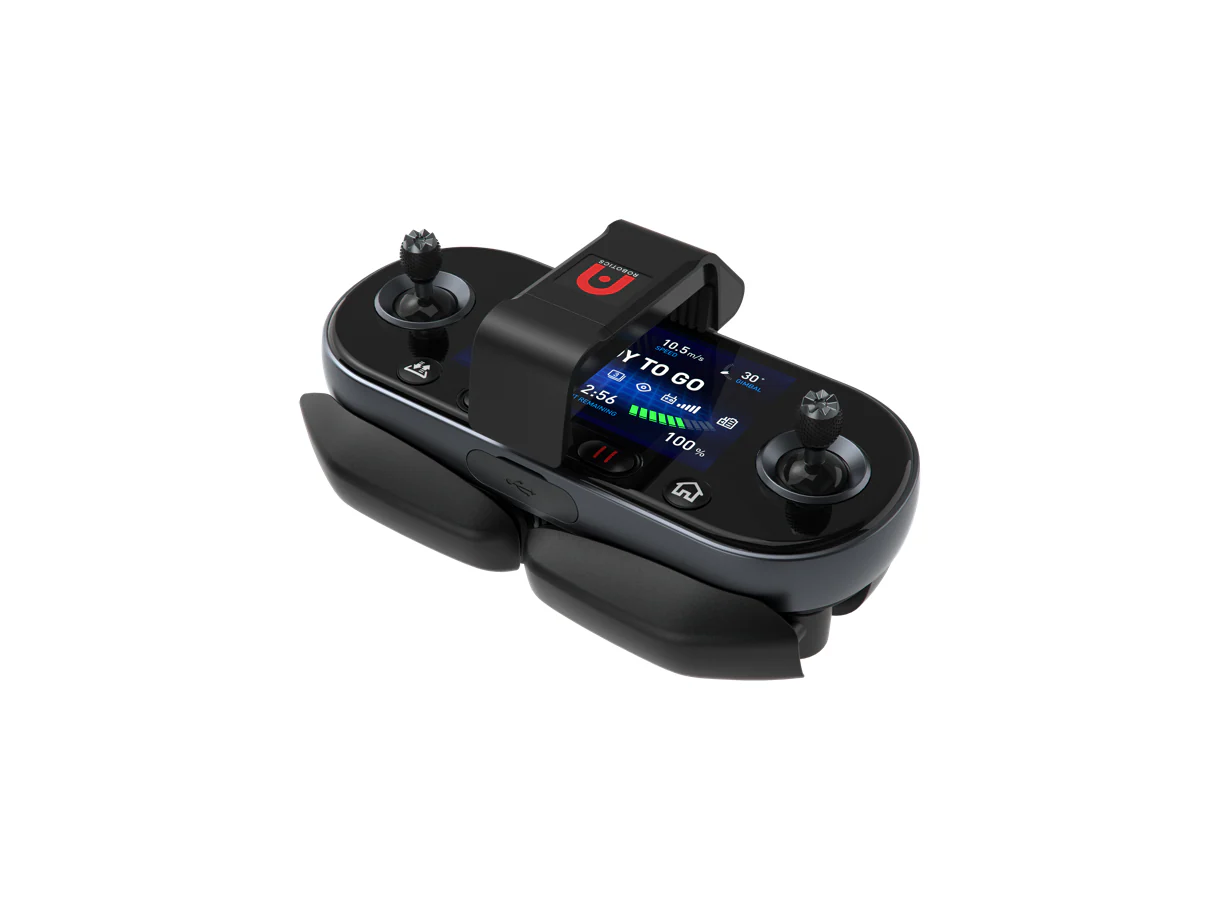

EVO II Remote Controller V2
EVO Ⅱ Remote Controller supports transmission up to 9 km away and enables real-time video receiving and playing without the need of connecting to a smartphone. Apart from real-time video, a standard 3.26-inch OLED screen keeps you informed of critical information including battery level, GPS signal and flying speed.
[intro]Product Information
Highlights
3.26-inch OLED all-color sunlight readable screen; 18W fast charging (charging to 80% in 1.2h); Micro USB charging interface supports standard short USB cable for smartphone connecting; 5Ah built-in battery.
Specification
Working Frequency: 2.4 ~ 2.4835 Ghz
Maximum Transmission Distance (without barrier or interruption) FCC: 9 km
CE: 5 km
Operating Environment Temp.: 0-40℃
Transmitting Power (EIRP): 2.4 - 2.4835 GHz
FCC: ≤ 26 dBm
ISED: ≤ 26 dBm
CE: ≤ 20 dBm
RCM: ≤ 20 dBm
SRRC: ≤ 20 dBm
Battery Capacity: 5000 mAh
Weight: 370g
Working Current/Voltage: 1.7A/3.7V
Charging Temp.: 0-40℃
Phone Clamp Suitable for: phones with a length < 84 mm and thickness < 13 mm
Standard USB Short Cable Applicable to: Micro USB (Type-B), USB-C
Battery Life: 2.8h
OLED Brightness: 330 nit
Fast Charging Time: about 2h
